Implements a UDP client for sending and receiving data over a network. Provides both synchronous and asynchronous operations. More...

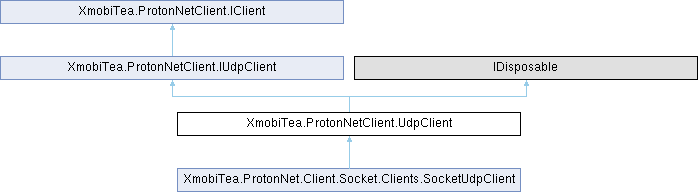

Inheritance diagram for XmobiTea.ProtonNetClient.UdpClient:

Public Member Functions
	UdpClient (string address, int port, UdpClientOptions options)
	Initializes a new instance of the UdpClient class.

INetworkStatistics	GetNetworkStatistics ()
	Gets the network statistics associated with the client.

virtual bool	Connect ()
	Connects the client to the server synchronously.

virtual bool	Disconnect ()
	Disconnects the client from the server synchronously.

virtual bool	Reconnect ()
	Reconnects the client to the server by first disconnecting and then reconnecting.

virtual bool	ConnectAsync ()
	Connects the client to the server asynchronously.

virtual bool	DisconnectAsync ()
	Disconnects the client from the server asynchronously.

virtual bool	ReconnectAsync ()
	Reconnects the client to the server asynchronously by first disconnecting and then reconnecting.

virtual void	JoinMulticastGroup (string address)
	Joins a multicast group by the specified address.

virtual void	LeaveMulticastGroup (string address)
	Leaves a multicast group by the specified address.

virtual int	Send (byte[] buffer)
	Sends data to the server synchronously.

virtual int	Send (byte[] buffer, int position, int length)
	Sends data to the server synchronously starting from a specific position in the buffer.

virtual int	Send (EndPoint endPoint, byte[] buffer)
	Sends data to the specified endpoint synchronously.

virtual int	Send (EndPoint endPoint, byte[] buffer, int position, int length)
	Sends data to the specified endpoint synchronously, starting from a specific position in the buffer.

virtual bool	SendAsync (byte[] buffer)
	Sends data to the server asynchronously.

virtual bool	SendAsync (byte[] buffer, int position, int length)
	Sends data to the server asynchronously starting from a specific position in the buffer.

virtual bool	SendAsync (EndPoint endPoint, byte[] buffer)
	Sends data to the specified endpoint asynchronously.

virtual bool	SendAsync (EndPoint endPoint, byte[] buffer, int position, int length)
	Sends data to the specified endpoint asynchronously, starting from a specific position in the buffer.

void	Dispose ()
	Disposes the UDP client, releasing all resources.

Public Member Functions inherited from XmobiTea.ProtonNetClient.IUdpClient
Public Member Functions inherited from XmobiTea.ProtonNetClient.IClient

Public Attributes
EndPoint	EndPoint
	Gets or sets the endpoint representing the server's address and port.

Protected Member Functions
virtual void	OnConnecting ()
	Called when the client is in the process of connecting. Can be overridden in derived classes to handle the event.

virtual void	OnConnected ()
	Called when the client has successfully connected to the server. Can be overridden in derived classes to handle the event.

virtual void	OnDisconnecting ()
	Called when the client is in the process of disconnecting. Can be overridden in derived classes to handle the event.

virtual void	OnDisconnected ()
	Called when the client has successfully disconnected from the server. Can be overridden in derived classes to handle the event.

virtual void	OnJoinedMulticastGroup (string address)
	Called when the client successfully joins a multicast group. Can be overridden in derived classes to handle the event.

virtual void	OnLeftMulticastGroup (string address)
	Called when the client successfully leaves a multicast group. Can be overridden in derived classes to handle the event.

virtual void	OnReceived (EndPoint endPoint, byte[] buffer, int position, int length)
	Called when data is received from the server. Can be overridden in derived classes to handle the event.

virtual void	OnSent (EndPoint endPoint, int sent)
	Called when data is successfully sent to the server. Can be overridden in derived classes to handle the event.

virtual void	OnEmpty ()
	Called when the send buffer is empty. Can be overridden in derived classes to handle the event.

virtual void	OnError (SocketError error)
	Called when an error occurs during socket operations. Can be overridden in derived classes to handle the event.

virtual void	Dispose (bool disposingManagedResources)
	Disposes the UDP client, releasing managed resources if specified.

Properties
string	Id `[get]`
	Gets the unique identifier for this UDP client instance.

string	Address `[get]`
	Gets the server address to which the client is connected.

int	Port `[get]`
	Gets the port number on the server to which the client is connected.

Socket	Socket `[get]`
	Gets the underlying socket used for the connection.

UdpClientOptions	Options `[get]`
	Gets the options used to configure the UDP client.

bool	IsConnecting `[get]`
	Gets a value indicating whether the client is currently connecting.

bool	IsConnected `[get]`
	Gets a value indicating whether the client is connected to the server.

bool	IsDisposed `[get]`
	Gets a value indicating whether the client has been disposed.

bool	IsSocketDisposed = true `[get]`
	Gets a value indicating whether the socket has been disposed.

Detailed Description

Implements a UDP client for sending and receiving data over a network. Provides both synchronous and asynchronous operations.

Constructor & Destructor Documentation

◆ UdpClient()

XmobiTea.ProtonNetClient.UdpClient.UdpClient	(	string	address,
		int	port,
		UdpClientOptions	options )

Initializes a new instance of the UdpClient class.

Parameters

address	The server address to connect to.
port	The port number on the server.
options	UDP client options for configuring the connection.

Member Function Documentation

◆ Connect()

virtual bool XmobiTea.ProtonNetClient.UdpClient.Connect ( )

virtual

Connects the client to the server synchronously.

Returns: True if the connection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ ConnectAsync()

virtual bool XmobiTea.ProtonNetClient.UdpClient.ConnectAsync ( )

virtual

Connects the client to the server asynchronously.

Returns: True if the connection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

◆ Disconnect()

virtual bool XmobiTea.ProtonNetClient.UdpClient.Disconnect ( )

virtual

Disconnects the client from the server synchronously.

Returns: True if the disconnection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ DisconnectAsync()

virtual bool XmobiTea.ProtonNetClient.UdpClient.DisconnectAsync ( )

virtual

Disconnects the client from the server asynchronously.

Returns: True if the disconnection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

◆ Dispose()

virtual void XmobiTea.ProtonNetClient.UdpClient.Dispose ( bool disposingManagedResources )

protectedvirtual

Disposes the UDP client, releasing managed resources if specified.

Parameters

disposingManagedResources True to release managed resources; otherwise, false.

◆ GetNetworkStatistics()

INetworkStatistics XmobiTea.ProtonNetClient.UdpClient.GetNetworkStatistics ( )

Gets the network statistics associated with the client.

Returns: An object implementing INetworkStatistics containing network statistics.

Implements XmobiTea.ProtonNetClient.IClient.

◆ JoinMulticastGroup()

virtual void XmobiTea.ProtonNetClient.UdpClient.JoinMulticastGroup ( string address )

virtual

Joins a multicast group by the specified address.

Parameters

address The address of the multicast group.

Implements XmobiTea.ProtonNetClient.IUdpClient.

◆ LeaveMulticastGroup()

virtual void XmobiTea.ProtonNetClient.UdpClient.LeaveMulticastGroup ( string address )

virtual

Leaves a multicast group by the specified address.

Parameters

address The address of the multicast group.

Implements XmobiTea.ProtonNetClient.IUdpClient.

◆ OnConnected()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnConnected ( )

protectedvirtual

Called when the client has successfully connected to the server. Can be overridden in derived classes to handle the event.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ OnDisconnected()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnDisconnected ( )

protectedvirtual

Called when the client has successfully disconnected from the server. Can be overridden in derived classes to handle the event.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ OnError()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnError ( SocketError error )

protectedvirtual

Called when an error occurs during socket operations. Can be overridden in derived classes to handle the event.

Parameters

error The socket error that occurred.

◆ OnJoinedMulticastGroup()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnJoinedMulticastGroup ( string address )

protectedvirtual

Called when the client successfully joins a multicast group. Can be overridden in derived classes to handle the event.

Parameters

address The address of the multicast group.

◆ OnLeftMulticastGroup()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnLeftMulticastGroup ( string address )

protectedvirtual

Called when the client successfully leaves a multicast group. Can be overridden in derived classes to handle the event.

Parameters

address The address of the multicast group.

◆ OnReceived()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnReceived	(	EndPoint	endPoint,
		byte[]	buffer,
		int	position,
		int	length )

protectedvirtual

Called when data is received from the server. Can be overridden in derived classes to handle the event.

Parameters

endPoint	The endpoint from which the data is received.
buffer	The buffer containing the received data.
position	The starting position in the buffer.
length	The length of the received data.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ OnSent()

virtual void XmobiTea.ProtonNetClient.UdpClient.OnSent	(	EndPoint	endPoint,
		int	sent )

protectedvirtual

Called when data is successfully sent to the server. Can be overridden in derived classes to handle the event.

Parameters

endPoint	The endpoint to which the data was sent.
sent	The number of bytes sent.

◆ Reconnect()

virtual bool XmobiTea.ProtonNetClient.UdpClient.Reconnect ( )

virtual

Reconnects the client to the server by first disconnecting and then reconnecting.

Returns: True if the reconnection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

Reimplemented in XmobiTea.ProtonNet.Client.Socket.Clients.SocketUdpClient.

◆ ReconnectAsync()

virtual bool XmobiTea.ProtonNetClient.UdpClient.ReconnectAsync ( )

virtual

Reconnects the client to the server asynchronously by first disconnecting and then reconnecting.

Returns: True if the reconnection is successful; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

◆ Send() [1/4]

virtual int XmobiTea.ProtonNetClient.UdpClient.Send ( byte[] buffer )

virtual

Sends data to the server synchronously.

Parameters

buffer The data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetClient.IClient.

◆ Send() [2/4]

virtual int XmobiTea.ProtonNetClient.UdpClient.Send	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Sends data to the server synchronously starting from a specific position in the buffer.

Parameters

buffer	The data to send.
position	The starting position in the buffer.
length	The number of bytes to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetClient.IClient.

◆ Send() [3/4]

virtual int XmobiTea.ProtonNetClient.UdpClient.Send	(	EndPoint	endPoint,
		byte[]	buffer )

virtual

Sends data to the specified endpoint synchronously.

Parameters

endPoint	The endpoint to which the data is sent.
buffer	The data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetClient.IUdpClient.

◆ Send() [4/4]

virtual int XmobiTea.ProtonNetClient.UdpClient.Send	(	EndPoint	endPoint,
		byte[]	buffer,
		int	position,
		int	length )

virtual

Sends data to the specified endpoint synchronously, starting from a specific position in the buffer.

Parameters

endPoint	The endpoint to which the data is sent.
buffer	The data to send.
position	The starting position in the buffer.
length	The number of bytes to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetClient.IUdpClient.

◆ SendAsync() [1/4]

virtual bool XmobiTea.ProtonNetClient.UdpClient.SendAsync ( byte[] buffer )

virtual

Sends data to the server asynchronously.

Parameters

buffer The data to send.

Returns: True if the data was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

◆ SendAsync() [2/4]

virtual bool XmobiTea.ProtonNetClient.UdpClient.SendAsync	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Sends data to the server asynchronously starting from a specific position in the buffer.

Parameters

buffer	The data to send.
position	The starting position in the buffer.
length	The number of bytes to send.

Returns: True if the data was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetClient.IClient.

◆ SendAsync() [3/4]

virtual bool XmobiTea.ProtonNetClient.UdpClient.SendAsync	(	EndPoint	endPoint,
		byte[]	buffer )

virtual

Sends data to the specified endpoint asynchronously.

Parameters

endPoint	The endpoint to which the data is sent.
buffer	The data to send.

Returns: True if the data was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetClient.IUdpClient.

◆ SendAsync() [4/4]

virtual bool XmobiTea.ProtonNetClient.UdpClient.SendAsync	(	EndPoint	endPoint,
		byte[]	buffer,
		int	position,
		int	length )

virtual

Sends data to the specified endpoint asynchronously, starting from a specific position in the buffer.

Parameters

endPoint	The endpoint to which the data is sent.
buffer	The data to send.
position	The starting position in the buffer.
length	The number of bytes to send.

Returns: True if the data was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetClient.IUdpClient.

The documentation for this class was generated from the following file:

XmobiTea.ProtonNetClient/IUdpClient.cs

Public Member Functions

Public Attributes

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ UdpClient()

Member Function Documentation

◆ Connect()

◆ ConnectAsync()

◆ Disconnect()

◆ DisconnectAsync()

◆ Dispose()

◆ GetNetworkStatistics()

◆ JoinMulticastGroup()

◆ LeaveMulticastGroup()

◆ OnConnected()

◆ OnDisconnected()

◆ OnError()

◆ OnJoinedMulticastGroup()

◆ OnLeftMulticastGroup()

◆ OnReceived()

◆ OnSent()

◆ Reconnect()

◆ ReconnectAsync()

◆ Send() [1/4]

◆ Send() [2/4]

◆ Send() [3/4]

◆ Send() [4/4]

◆ SendAsync() [1/4]

◆ SendAsync() [2/4]

◆ SendAsync() [3/4]

◆ SendAsync() [4/4]
