Represents a UDP server that provides functionalities for managing UDP connections and data transmission. More...

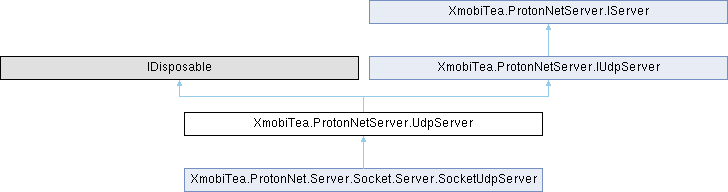

Inheritance diagram for XmobiTea.ProtonNetServer.UdpServer:

Public Member Functions
	UdpServer (string address, int port, UdpServerOptions options)
	Initializes a new instance of the UdpServer class with the specified address, port, and options.

virtual bool	Start (string multicastAddress, int multicastPort)
	Starts the UDP server with the specified multicast address and port.

virtual bool	Start ()
	Starts the UDP server.

virtual bool	Stop ()
	Stops the UDP server.

virtual bool	Restart ()
	Restarts the UDP server.

virtual bool	BroadcastAll (byte[] buffer)
	Broadcasts a message to all clients using the specified buffer.

virtual bool	BroadcastAll (byte[] buffer, int position, int length)
	Broadcasts a message to all clients using the specified buffer, position, and length.

virtual bool	BroadcastAllAsync (byte[] buffer)
	Broadcasts a message asynchronously to all clients using the specified buffer.

virtual bool	BroadcastAllAsync (byte[] buffer, int position, int length)
	Broadcasts a message asynchronously to all clients using the specified buffer, position, and length.

virtual bool	DisconnectAll ()
	Disconnects all connected sessions.

IServerNetworkStatistics	GetNetworkStatistics ()
	Retrieves the server's network statistics.

virtual bool	SendAsync (EndPoint endpoint, byte[] buffer)
	Sends a datagram asynchronously to the specified endpoint using the provided buffer.

virtual bool	SendAsync (EndPoint endpoint, byte[] buffer, int position, int length)
	Sends a datagram asynchronously to the specified endpoint using the provided buffer, position, and length.

virtual int	Send (EndPoint endpoint, byte[] buffer)
	Sends a datagram synchronously to the specified endpoint using the provided buffer.

virtual int	Send (EndPoint endpoint, byte[] buffer, int position, int length)
	Sends a datagram synchronously to the specified endpoint using the provided buffer, position, and length.

UdpSession	GetSession (string id)
	Finds a session by its unique identifier.

UdpSession	GetSession (EndPoint endpoint)
	Finds a session by its remote endpoint.

void	Dispose ()
	Releases the unmanaged resources used by the UdpServer and optionally releases the managed resources.

Public Member Functions inherited from XmobiTea.ProtonNetServer.IUdpServer
Public Member Functions inherited from XmobiTea.ProtonNetServer.IServer

Protected Member Functions
virtual string	CreateRandomId ()
	Generates a random identifier string.

virtual UdpSession	CreateSession ()
	Creates a new instance of the UdpSession class.

virtual void	OnStarting ()
	Called when the server is starting.

virtual void	OnStarted ()
	Called when the server has started.

virtual void	OnStopping ()
	Called when the server is stopping.

virtual void	OnStopped ()
	Called when the server has stopped.

virtual void	OnConnecting (UdpSession session)
	Called when a session is connecting.

virtual void	OnConnected (UdpSession session)
	Called when a session has connected.

virtual void	OnDisconnecting (UdpSession session)
	Called when a session is disconnecting.

virtual void	OnDisconnected (UdpSession session)
	Called when a session has disconnected.

virtual void	OnReceived (EndPoint endpoint, byte[] buffer, int position, int length)
	Called when data is received from a remote endpoint.

virtual void	OnSent (EndPoint endpoint, int sent)
	Called when data has been sent to a remote endpoint.

virtual void	OnError (SocketError error)
	Called when an error occurs during a socket operation.

virtual void	Dispose (bool disposingManagedResources)
	Releases the unmanaged resources used by the UdpServer and optionally releases the managed resources.

Properties
string	Id `[get]`
	Gets the unique identifier of the server.

string	Address `[get]`
	Gets the IP address of the server.

int	Port `[get]`
	Gets the port number on which the server is listening.

EndPoint	EndPoint `[get]`
	Gets the server's local endpoint.

EndPoint	MulticastEndpoint `[get]`
	Gets the multicast endpoint used by the server.

ConcurrentDictionary< string, UdpSession >	Sessions `[get]`
	Gets the collection of active UDP sessions.

ConcurrentDictionary< System.Net.EndPoint, UdpSession >	EndPointWithSocketSessionDict `[get]`
	Gets the dictionary that maps endpoints to UDP sessions.

int	ConnectedSessions `[get]`
	Gets the number of connected sessions.

UdpServerOptions	Options `[get]`
	Gets the options used by the UDP server.

bool	IsStarted `[get]`
	Gets a value indicating whether the server has been started.

bool	IsDisposed `[get]`
	Gets a value indicating whether the server has been disposed.

bool	IsSocketDisposed `[get]`
	Gets a value indicating whether the server's socket has been disposed.

Detailed Description

Represents a UDP server that provides functionalities for managing UDP connections and data transmission.

Constructor & Destructor Documentation

◆ UdpServer()

XmobiTea.ProtonNetServer.UdpServer.UdpServer	(	string	address,
		int	port,
		UdpServerOptions	options )

Initializes a new instance of the UdpServer class with the specified address, port, and options.

Parameters

address	The IP address of the server.
port	The port number on which the server listens.
options	The options used by the server.

Member Function Documentation

◆ BroadcastAll() [1/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.BroadcastAll ( byte[] buffer )

virtual

Broadcasts a message to all clients using the specified buffer.

Parameters

buffer The data buffer to broadcast.

Returns: True if the broadcast was successful; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ BroadcastAll() [2/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.BroadcastAll	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Broadcasts a message to all clients using the specified buffer, position, and length.

Parameters

buffer	The data buffer to broadcast.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the broadcast was successful; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ BroadcastAllAsync() [1/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.BroadcastAllAsync ( byte[] buffer )

virtual

Broadcasts a message asynchronously to all clients using the specified buffer.

Parameters

buffer The data buffer to broadcast.

Returns: True if the broadcast was successful; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ BroadcastAllAsync() [2/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.BroadcastAllAsync	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Broadcasts a message asynchronously to all clients using the specified buffer, position, and length.

Parameters

buffer	The data buffer to broadcast.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the broadcast was successful; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ CreateRandomId()

virtual string XmobiTea.ProtonNetServer.UdpServer.CreateRandomId ( )

protectedvirtual

Generates a random identifier string.

Returns: A randomly generated string.

◆ CreateSession()

virtual UdpSession XmobiTea.ProtonNetServer.UdpServer.CreateSession ( )

protectedvirtual

Creates a new instance of the UdpSession class.

Returns: A new UdpSession instance.

Reimplemented in XmobiTea.ProtonNet.Server.Socket.Server.SocketUdpServer.

◆ DisconnectAll()

virtual bool XmobiTea.ProtonNetServer.UdpServer.DisconnectAll ( )

virtual

Disconnects all connected sessions.

Returns: True if all sessions were disconnected successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ Dispose()

virtual void XmobiTea.ProtonNetServer.UdpServer.Dispose ( bool disposingManagedResources )

protectedvirtual

Releases the unmanaged resources used by the UdpServer and optionally releases the managed resources.

Parameters

disposingManagedResources True to release both managed and unmanaged resources; false to release only unmanaged resources.

◆ GetNetworkStatistics()

IServerNetworkStatistics XmobiTea.ProtonNetServer.UdpServer.GetNetworkStatistics ( )

Retrieves the server's network statistics.

Returns: An object that provides network statistics.

Implements XmobiTea.ProtonNetServer.IServer.

◆ GetSession() [1/2]

UdpSession XmobiTea.ProtonNetServer.UdpServer.GetSession ( EndPoint endpoint )

Finds a session by its remote endpoint.

Parameters

endpoint The remote endpoint.

Returns: The UdpSession associated with the specified endpoint, or null if not found.

◆ GetSession() [2/2]

UdpSession XmobiTea.ProtonNetServer.UdpServer.GetSession ( string id )

Finds a session by its unique identifier.

Parameters

id	The session identifier.

Returns: The UdpSession associated with the specified identifier, or null if not found.

◆ OnConnected()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnConnected ( UdpSession session )

protectedvirtual

Called when a session has connected.

Parameters

session The session that has connected.

◆ OnConnecting()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnConnecting ( UdpSession session )

protectedvirtual

Called when a session is connecting.

Parameters

session The session that is connecting.

◆ OnDisconnected()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnDisconnected ( UdpSession session )

protectedvirtual

Called when a session has disconnected.

Parameters

session The session that has disconnected.

◆ OnDisconnecting()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnDisconnecting ( UdpSession session )

protectedvirtual

Called when a session is disconnecting.

Parameters

session The session that is disconnecting.

◆ OnError()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnError ( SocketError error )

protectedvirtual

Called when an error occurs during a socket operation.

Parameters

error The socket error that occurred.

◆ OnReceived()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnReceived	(	EndPoint	endpoint,
		byte[]	buffer,
		int	position,
		int	length )

protectedvirtual

Called when data is received from a remote endpoint.

Parameters

endpoint	The remote endpoint.
buffer	The data buffer containing the received data.
position	The starting position in the buffer.
length	The length of the received data.

◆ OnSent()

virtual void XmobiTea.ProtonNetServer.UdpServer.OnSent	(	EndPoint	endpoint,
		int	sent )

protectedvirtual

Called when data has been sent to a remote endpoint.

Parameters

endpoint	The remote endpoint.
sent	The number of bytes sent.

◆ Restart()

virtual bool XmobiTea.ProtonNetServer.UdpServer.Restart ( )

virtual

Restarts the UDP server.

Returns: True if the server restarted successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ Send() [1/2]

virtual int XmobiTea.ProtonNetServer.UdpServer.Send	(	EndPoint	endpoint,
		byte[]	buffer )

virtual

Sends a datagram synchronously to the specified endpoint using the provided buffer.

Parameters

endpoint	The destination endpoint.
buffer	The data buffer to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IUdpServer.

◆ Send() [2/2]

virtual int XmobiTea.ProtonNetServer.UdpServer.Send	(	EndPoint	endpoint,
		byte[]	buffer,
		int	position,
		int	length )

virtual

Sends a datagram synchronously to the specified endpoint using the provided buffer, position, and length.

Parameters

endpoint	The destination endpoint.
buffer	The data buffer to send.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IUdpServer.

◆ SendAsync() [1/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.SendAsync	(	EndPoint	endpoint,
		byte[]	buffer )

virtual

Sends a datagram asynchronously to the specified endpoint using the provided buffer.

Parameters

endpoint	The destination endpoint.
buffer	The data buffer to send.

Returns: True if the data was successfully queued for sending; otherwise, false.

Implements XmobiTea.ProtonNetServer.IUdpServer.

◆ SendAsync() [2/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.SendAsync	(	EndPoint	endpoint,
		byte[]	buffer,
		int	position,
		int	length )

virtual

Sends a datagram asynchronously to the specified endpoint using the provided buffer, position, and length.

Parameters

endpoint	The destination endpoint.
buffer	The data buffer to send.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the data was successfully queued for sending; otherwise, false.

Implements XmobiTea.ProtonNetServer.IUdpServer.

◆ Start() [1/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.Start ( )

virtual

Starts the UDP server.

Returns: True if the server started successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

◆ Start() [2/2]

virtual bool XmobiTea.ProtonNetServer.UdpServer.Start	(	string	multicastAddress,
		int	multicastPort )

virtual

Starts the UDP server with the specified multicast address and port.

Parameters

multicastAddress	The multicast address to join.
multicastPort	The multicast port to use.

Returns: True if the server started successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IUdpServer.

◆ Stop()

virtual bool XmobiTea.ProtonNetServer.UdpServer.Stop ( )

virtual

Stops the UDP server.

Returns: True if the server stopped successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IServer.

The documentation for this class was generated from the following file:

XmobiTea.ProtonNetServer/IUdpServer.cs

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ UdpServer()

Member Function Documentation

◆ BroadcastAll() [1/2]

◆ BroadcastAll() [2/2]

◆ BroadcastAllAsync() [1/2]

◆ BroadcastAllAsync() [2/2]

◆ CreateRandomId()

◆ CreateSession()

◆ DisconnectAll()

◆ Dispose()

◆ GetNetworkStatistics()

◆ GetSession() [1/2]

◆ GetSession() [2/2]

◆ OnConnected()

◆ OnConnecting()

◆ OnDisconnected()

◆ OnDisconnecting()

◆ OnError()

◆ OnReceived()

◆ OnSent()

◆ Restart()

◆ Send() [1/2]

◆ Send() [2/2]

◆ SendAsync() [1/2]

◆ SendAsync() [2/2]

◆ Start() [1/2]

◆ Start() [2/2]

◆ Stop()
