Represents a WebSocket session that inherits from HttpSession and implements WebSocket functionality. More...

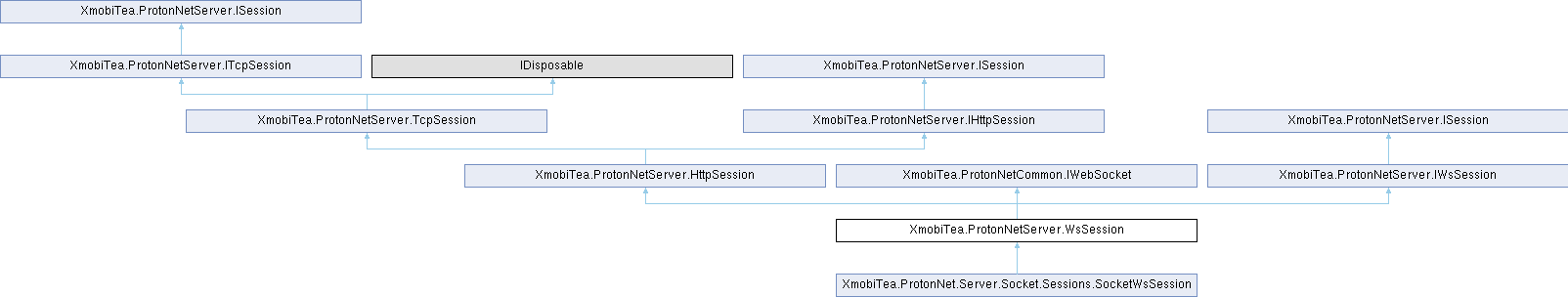

Inheritance diagram for XmobiTea.ProtonNetServer.WsSession:

Public Member Functions
WsSession(WsServer server) int	SendText (byte[] buffer)
	Initializes a new instance of the WsSession class with the specified WebSocket server.

int	SendText (byte[] buffer, int position, int length)
	Sends a text message synchronously to the WebSocket connection with a specified position and length.

bool	SendTextAsync (byte[] buffer)
	Sends a text message asynchronously to the WebSocket connection.

bool	SendTextAsync (byte[] buffer, int position, int length)
	Sends a text message asynchronously to the WebSocket connection with a specified position and length.

int	SendBinary (byte[] buffer)
	Sends a binary message synchronously to the WebSocket connection.

int	SendBinary (byte[] buffer, int position, int length)
	Sends a binary message synchronously to the WebSocket connection with a specified position and length.

bool	SendBinaryAsync (byte[] buffer)
	Sends a binary message asynchronously to the WebSocket connection.

bool	SendBinaryAsync (byte[] buffer, int position, int length)
	Sends a binary message asynchronously to the WebSocket connection with a specified position and length.

int	SendClose (int status, byte[] buffer)
	Sends a close frame synchronously to the WebSocket connection with the specified status code and buffer.

int	SendClose (int status, byte[] buffer, int position, int length)
	Sends a close frame synchronously to the WebSocket connection with the specified status code, buffer, position, and length.

bool	SendCloseAsync (int status, byte[] buffer)
	Sends a close frame asynchronously to the WebSocket connection with the specified status code and buffer.

bool	SendCloseAsync (int status, byte[] buffer, int position, int length)
	Sends a close frame asynchronously to the WebSocket connection with the specified status code, buffer, position, and length.

int	SendPing (byte[] buffer)
	Sends a ping frame synchronously to the WebSocket connection.

int	SendPing (byte[] buffer, int position, int length)
	Sends a ping frame synchronously to the WebSocket connection with a specified position and length.

bool	SendPingAsync (byte[] buffer)
	Sends a ping frame asynchronously to the WebSocket connection.

bool	SendPingAsync (byte[] buffer, int position, int length)
	Sends a ping frame asynchronously to the WebSocket connection with a specified position and length.

int	SendPong (byte[] buffer)
	Sends a pong frame synchronously to the WebSocket connection.

int	SendPong (byte[] buffer, int position, int length)
	Sends a pong frame synchronously to the WebSocket connection with a specified position and length.

bool	SendPongAsync (byte[] buffer)
	Sends a pong frame asynchronously to the WebSocket connection.

bool	SendPongAsync (byte[] buffer, int position, int length)
	Sends a pong frame asynchronously to the WebSocket connection with a specified position and length.

virtual void	OnWsConnecting (HttpRequest request)
	Called when a WebSocket connection is being established.

virtual void	OnWsConnected (HttpResponse response)
	Called when a WebSocket connection is successfully established.

virtual bool	OnWsConnecting (HttpRequest request, HttpResponse response)
	Called when a WebSocket connection is being established.

virtual void	OnWsConnected (HttpRequest request)
	Called when a WebSocket connection is successfully established.

virtual void	OnWsDisconnecting ()
	Called when a WebSocket connection is being disconnected.

virtual void	OnWsDisconnected ()
	Called when a WebSocket connection is successfully disconnected.

virtual void	OnWsReceived (byte[] buffer, int position, int length)
	Called when data is received from the WebSocket connection.

virtual void	OnWsClose (byte[] buffer, int position, int length, int status=1000)
	Called when a WebSocket connection is closed.

virtual void	OnWsPing (byte[] buffer, int position, int length)
	Called when a WebSocket ping is received.

virtual void	OnWsPong (byte[] buffer, int position, int length)
	Called when a WebSocket pong is received.

virtual void	OnWsError (string error)
	Called when a WebSocket error occurs with a custom error message.

virtual void	OnWsError (SocketError error)
	Called when a WebSocket error occurs with a SocketError instance.

void	SendUpgrade (HttpResponse response)
	Sends a WebSocket upgrade response to the client.

Public Member Functions inherited from XmobiTea.ProtonNetServer.HttpSession
	HttpSession (HttpServer server)
	Initializes a new instance of the HttpSession class.

virtual int	SendResponse (HttpResponse response)
	Sends an HTTP response synchronously.

virtual bool	SendResponseAsync (HttpResponse response)
	Sends an HTTP response asynchronously.

Public Member Functions inherited from XmobiTea.ProtonNetServer.TcpSession
	TcpSession (TcpServer server)
	Initializes a new instance of the TcpSession class.

INetworkStatistics	GetNetworkStatistics ()
	Gets the network statistics for this session.

virtual bool	Disconnect ()
	Disconnects the session.

virtual int	Send (byte[] buffer)
	Sends data synchronously.

virtual int	Send (byte[] buffer, int position, int length)
	Sends data synchronously with the specified position and length.

virtual bool	SendAsync (byte[] buffer)
	Sends data asynchronously.

virtual bool	SendAsync (byte[] buffer, int position, int length)
	Sends data asynchronously with the specified position and length.

void	Dispose ()
	Releases all resources used by the current instance of the TcpSession class.

Public Member Functions inherited from XmobiTea.ProtonNetServer.ISession
Public Member Functions inherited from XmobiTea.ProtonNetServer.IHttpSession
Public Member Functions inherited from XmobiTea.ProtonNetCommon.IWebSocket
Public Member Functions inherited from XmobiTea.ProtonNetServer.IWsSession

Protected Member Functions
override void	OnDisconnecting ()
	Called when the session is disconnecting.

override void	OnDisconnected ()
	Called when the session has been disconnected.

override void	OnReceived (byte[] buffer, int position, int length)
	Called when data is received from the connection.

override void	OnReceivedRequestHeader (HttpRequest request)
	Called when the HTTP request headers are received.

override void	OnReceivedRequest (HttpRequest request)
	Called when the complete HTTP request is received.

override void	OnReceivedRequestError (HttpRequest request, string error)
	Called when an error occurs while receiving the HTTP request.

Protected Member Functions inherited from XmobiTea.ProtonNetServer.HttpSession
Protected Member Functions inherited from XmobiTea.ProtonNetServer.TcpSession
virtual void	OnConnecting ()
	Invoked when the session is in the process of connecting.

virtual void	OnConnected ()
	Invoked when the session has successfully connected.

virtual void	OnSent (int sent, int pending)
	Invoked when data is successfully sent to the remote endpoint.

virtual void	OnEmpty ()
	Invoked when the send buffer is empty.

virtual void	OnError (SocketError error)
	Invoked when an error occurs during the session operation.

virtual void	Dispose (bool disposingManagedResources)
	Releases the unmanaged resources used by the TcpSession and optionally releases the managed resources.

Additional Inherited Members
Package Functions inherited from XmobiTea.ProtonNetServer.TcpSession
Properties inherited from XmobiTea.ProtonNetServer.HttpSession
HttpRequest	Request `[get]`
	Gets the current HTTP request being processed.

HttpResponse	Response `[get]`
	Gets the current HTTP response being processed.

Properties inherited from XmobiTea.ProtonNetServer.TcpSession
string	Id `[get]`
	Gets the unique identifier for this session.

TcpServer	Server `[get]`
	Gets the server that owns this session.

Socket	Socket `[get]`
	Gets the socket associated with this session.

bool	IsConnected `[get]`
	Gets a value indicating whether the session is currently connected.

bool	IsDisposed `[get]`
	Gets a value indicating whether the session has been disposed.

bool	IsSocketDisposed `[get]`
	Gets a value indicating whether the socket has been disposed.

TcpServerOptions	Options `[get]`
	Gets the options for the TCP server.

Detailed Description

Represents a WebSocket session that inherits from HttpSession and implements WebSocket functionality.

Member Function Documentation

◆ OnDisconnected()

override void XmobiTea.ProtonNetServer.WsSession.OnDisconnected ( )

protectedvirtual

Called when the session has been disconnected.

Reimplemented from XmobiTea.ProtonNetServer.HttpSession.

◆ OnDisconnecting()

override void XmobiTea.ProtonNetServer.WsSession.OnDisconnecting ( )

protectedvirtual

Called when the session is disconnecting.

Reimplemented from XmobiTea.ProtonNetServer.TcpSession.

◆ OnReceived()

override void XmobiTea.ProtonNetServer.WsSession.OnReceived	(	byte[]	buffer,
		int	position,
		int	length )

protectedvirtual

Called when data is received from the connection.

Parameters

buffer	The received data buffer.
position	The starting position in the buffer.
length	The length of the received data.

Reimplemented from XmobiTea.ProtonNetServer.HttpSession.

◆ OnReceivedRequest()

override void XmobiTea.ProtonNetServer.WsSession.OnReceivedRequest ( HttpRequest request )

protectedvirtual

Called when the complete HTTP request is received.

Parameters

request The received HTTP request.

Reimplemented from XmobiTea.ProtonNetServer.HttpSession.

◆ OnReceivedRequestError()

override void XmobiTea.ProtonNetServer.WsSession.OnReceivedRequestError	(	HttpRequest	request,
		string	error )

protectedvirtual

Called when an error occurs while receiving the HTTP request.

Parameters

request	The HTTP request that caused the error.
error	The error message.

Reimplemented from XmobiTea.ProtonNetServer.HttpSession.

◆ OnReceivedRequestHeader()

override void XmobiTea.ProtonNetServer.WsSession.OnReceivedRequestHeader ( HttpRequest request )

protectedvirtual

Called when the HTTP request headers are received.

Parameters

request The HTTP request containing the headers.

Reimplemented from XmobiTea.ProtonNetServer.HttpSession.

◆ OnWsClose()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsClose	(	byte[]	buffer,
		int	position,
		int	length,
		int	status = 1000 )

virtual

Called when a WebSocket connection is closed.

Parameters

buffer	The close data buffer.
position	The starting position in the buffer.
length	The length of the close data.
status	The close status code.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsConnected() [1/2]

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsConnected ( HttpRequest request )

virtual

Called when a WebSocket connection is successfully established.

Parameters

request The HTTP request for the WebSocket connection.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

Reimplemented in XmobiTea.ProtonNet.Server.Socket.Sessions.SocketWsSession.

◆ OnWsConnected() [2/2]

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsConnected ( HttpResponse response )

virtual

Called when a WebSocket connection is successfully established.

Parameters

response The HTTP response for the WebSocket connection.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsConnecting() [1/2]

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsConnecting ( HttpRequest request )

virtual

Called when a WebSocket connection is being established.

Parameters

request The HTTP request for the WebSocket connection.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsConnecting() [2/2]

virtual bool XmobiTea.ProtonNetServer.WsSession.OnWsConnecting	(	HttpRequest	request,
		HttpResponse	response )

virtual

Called when a WebSocket connection is being established.

Parameters

request	The HTTP request for the WebSocket connection.
response	The HTTP response for the WebSocket connection.

Returns: True if the connection is allowed; otherwise, false.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsDisconnected()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsDisconnected ( )

virtual

Called when a WebSocket connection is successfully disconnected.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

Reimplemented in XmobiTea.ProtonNet.Server.Socket.Sessions.SocketWsSession.

◆ OnWsDisconnecting()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsDisconnecting ( )

virtual

Called when a WebSocket connection is being disconnected.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsError() [1/2]

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsError ( SocketError error )

virtual

Called when a WebSocket error occurs with a SocketError instance.

Parameters

error The SocketError that occurred.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsError() [2/2]

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsError ( string error )

virtual

Called when a WebSocket error occurs with a custom error message.

Parameters

error The error message.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsPing()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsPing	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Called when a WebSocket ping is received.

Parameters

buffer	The ping data buffer.
position	The starting position in the buffer.
length	The length of the ping data.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsPong()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsPong	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Called when a WebSocket pong is received.

Parameters

buffer	The pong data buffer.
position	The starting position in the buffer.
length	The length of the pong data.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

◆ OnWsReceived()

virtual void XmobiTea.ProtonNetServer.WsSession.OnWsReceived	(	byte[]	buffer,
		int	position,
		int	length )

virtual

Called when data is received from the WebSocket connection.

Parameters

buffer	The received data buffer.
position	The starting position in the buffer.
length	The length of the received data.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

Reimplemented in XmobiTea.ProtonNet.Server.Socket.Sessions.SocketWsSession.

◆ SendBinary() [1/2]

int XmobiTea.ProtonNetServer.WsSession.SendBinary ( byte[] buffer )

Sends a binary message synchronously to the WebSocket connection.

Parameters

buffer The buffer containing the binary message.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendBinary() [2/2]

int XmobiTea.ProtonNetServer.WsSession.SendBinary	(	byte[]	buffer,
		int	position,
		int	length )

Sends a binary message synchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the binary message.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendBinaryAsync() [1/2]

bool XmobiTea.ProtonNetServer.WsSession.SendBinaryAsync ( byte[] buffer )

Sends a binary message asynchronously to the WebSocket connection.

Parameters

buffer The buffer containing the binary message.

Returns: True if the message was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendBinaryAsync() [2/2]

bool XmobiTea.ProtonNetServer.WsSession.SendBinaryAsync	(	byte[]	buffer,
		int	position,
		int	length )

Sends a binary message asynchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the binary message.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the message was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendClose() [1/2]

int XmobiTea.ProtonNetServer.WsSession.SendClose	(	int	status,
		byte[]	buffer )

Sends a close frame synchronously to the WebSocket connection with the specified status code and buffer.

Parameters

status	The close status code.
buffer	The buffer containing additional data to send with the close frame.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendClose() [2/2]

int XmobiTea.ProtonNetServer.WsSession.SendClose	(	int	status,
		byte[]	buffer,
		int	position,
		int	length )

Sends a close frame synchronously to the WebSocket connection with the specified status code, buffer, position, and length.

Parameters

status	The close status code.
buffer	The buffer containing additional data to send with the close frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendCloseAsync() [1/2]

bool XmobiTea.ProtonNetServer.WsSession.SendCloseAsync	(	int	status,
		byte[]	buffer )

Sends a close frame asynchronously to the WebSocket connection with the specified status code and buffer.

Parameters

status	The close status code.
buffer	The buffer containing additional data to send with the close frame.

Returns: True if the close frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendCloseAsync() [2/2]

bool XmobiTea.ProtonNetServer.WsSession.SendCloseAsync	(	int	status,
		byte[]	buffer,
		int	position,
		int	length )

Sends a close frame asynchronously to the WebSocket connection with the specified status code, buffer, position, and length.

Parameters

status	The close status code.
buffer	The buffer containing additional data to send with the close frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the close frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPing() [1/2]

int XmobiTea.ProtonNetServer.WsSession.SendPing ( byte[] buffer )

Sends a ping frame synchronously to the WebSocket connection.

Parameters

buffer The buffer containing the ping frame.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPing() [2/2]

int XmobiTea.ProtonNetServer.WsSession.SendPing	(	byte[]	buffer,
		int	position,
		int	length )

Sends a ping frame synchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the ping frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPingAsync() [1/2]

bool XmobiTea.ProtonNetServer.WsSession.SendPingAsync ( byte[] buffer )

Sends a ping frame asynchronously to the WebSocket connection.

Parameters

buffer The buffer containing the ping frame.

Returns: True if the ping frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPingAsync() [2/2]

bool XmobiTea.ProtonNetServer.WsSession.SendPingAsync	(	byte[]	buffer,
		int	position,
		int	length )

Sends a ping frame asynchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the ping frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the ping frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPong() [1/2]

int XmobiTea.ProtonNetServer.WsSession.SendPong ( byte[] buffer )

Sends a pong frame synchronously to the WebSocket connection.

Parameters

buffer The buffer containing the pong frame.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPong() [2/2]

int XmobiTea.ProtonNetServer.WsSession.SendPong	(	byte[]	buffer,
		int	position,
		int	length )

Sends a pong frame synchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the pong frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPongAsync() [1/2]

bool XmobiTea.ProtonNetServer.WsSession.SendPongAsync ( byte[] buffer )

Sends a pong frame asynchronously to the WebSocket connection.

Parameters

buffer The buffer containing the pong frame.

Returns: True if the pong frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendPongAsync() [2/2]

bool XmobiTea.ProtonNetServer.WsSession.SendPongAsync	(	byte[]	buffer,
		int	position,
		int	length )

Sends a pong frame asynchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the pong frame.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the pong frame was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendText() [1/2]

WsSession(WsServer server) int XmobiTea.ProtonNetServer.WsSession.SendText ( byte[] buffer )

Initializes a new instance of the WsSession class with the specified WebSocket server.

Parameters

server The WebSocket server.

Sends a text message synchronously to the WebSocket connection.

Parameters

buffer The buffer containing the text message.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendText() [2/2]

int XmobiTea.ProtonNetServer.WsSession.SendText	(	byte[]	buffer,
		int	position,
		int	length )

Sends a text message synchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the text message.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: The number of bytes sent.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendTextAsync() [1/2]

bool XmobiTea.ProtonNetServer.WsSession.SendTextAsync ( byte[] buffer )

Sends a text message asynchronously to the WebSocket connection.

Parameters

buffer The buffer containing the text message.

Returns: True if the message was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendTextAsync() [2/2]

bool XmobiTea.ProtonNetServer.WsSession.SendTextAsync	(	byte[]	buffer,
		int	position,
		int	length )

Sends a text message asynchronously to the WebSocket connection with a specified position and length.

Parameters

buffer	The buffer containing the text message.
position	The starting position in the buffer.
length	The length of the data to send.

Returns: True if the message was sent successfully; otherwise, false.

Implements XmobiTea.ProtonNetServer.IWsSession.

◆ SendUpgrade()

void XmobiTea.ProtonNetServer.WsSession.SendUpgrade ( HttpResponse response )

Sends a WebSocket upgrade response to the client.

Parameters

response The HTTP response containing the WebSocket upgrade information.

Implements XmobiTea.ProtonNetCommon.IWebSocket.

The documentation for this class was generated from the following file:

XmobiTea.ProtonNetServer/IWsSession.cs

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ OnDisconnected()

◆ OnDisconnecting()

◆ OnReceived()

◆ OnReceivedRequest()

◆ OnReceivedRequestError()

◆ OnReceivedRequestHeader()

◆ OnWsClose()

◆ OnWsConnected() [1/2]

◆ OnWsConnected() [2/2]

◆ OnWsConnecting() [1/2]

◆ OnWsConnecting() [2/2]

◆ OnWsDisconnected()

◆ OnWsDisconnecting()

◆ OnWsError() [1/2]

◆ OnWsError() [2/2]

◆ OnWsPing()

◆ OnWsPong()

◆ OnWsReceived()

◆ SendBinary() [1/2]

◆ SendBinary() [2/2]

◆ SendBinaryAsync() [1/2]

◆ SendBinaryAsync() [2/2]

◆ SendClose() [1/2]

◆ SendClose() [2/2]

◆ SendCloseAsync() [1/2]

◆ SendCloseAsync() [2/2]

◆ SendPing() [1/2]

◆ SendPing() [2/2]

◆ SendPingAsync() [1/2]

◆ SendPingAsync() [2/2]

◆ SendPong() [1/2]

◆ SendPong() [2/2]

◆ SendPongAsync() [1/2]

◆ SendPongAsync() [2/2]

◆ SendText() [1/2]

◆ SendText() [2/2]

◆ SendTextAsync() [1/2]

◆ SendTextAsync() [2/2]

◆ SendUpgrade()
